LJV Rotary Hollow Encoder Switch:RE4000XA-H01-0003

Place of Origin:Guangdong, China

Brand Name:LJV

Pulses ( Per Revolution ):10

Closed Circuit Resistance, Ohms:3 Ohms, max

Contact Rating:1mA/ 5Vdc

Operating Current, Maximum:1mA

Dielectric Strength:300Vac/ 1mA, I minute

Insulation Resistance, Minimum:100M ohms at 250Vdc/ 1mA

Sliding Noise ( at 60 RPM ):2.0ms max

Contact Bounce ( at 15 RPM):5.0ms max.

Operating Speed ( RPM ):100 RPM max.

Switch Power Rating 10mA/5Vdc

Switch Contact Resistance 100milliohms

Actual Electrical Travel, Nominal:Continuous

Dongguan LJV Industy Investments has been manufacturing rotary encoders, rotary potentiometers and rotary switches of various kinds for almost 20 years.

It is an aggregation of R&D, plastic and metal moulds manufacturting for components and finished products, so we could monitor every step of our products, and then the quality is guaranteed,

Any questions, please feel free to contact me!

LJV 9mm rotary encoder:RE09101AA-H01-0036

Place of Origin:Guangdong, China

Brand Name:LJV

Pulses ( Per Revolution ):10

Closed Circuit Resistance, Ohms:3 Ohms, max

Contact Rating:1mA/ 5Vdc

Operating Current, Maximum:1mA

Dielectric Strength:300Vac/ 1mA, I minute

Insulation Resistance, Minimum:100M ohms at 250Vdc/ 1mA

Sliding Noise ( at 60 RPM ):2.0ms max

Contact Bounce ( at 15 RPM):5.0ms max.

Operating Speed ( RPM ):100 RPM max.

Switch Power Rating 10mA/5Vdc

Switch Contact Resistance 100milliohms

Actual Electrical Travel, Nominal:Continuous

LJV 18mm Absolute Logic Rotary Encoding Device

Dongguan LJV Industy Investments has been manufacturing rotary encoders, rotary potentiometers and rotary switches of various kinds for almost 20 years.

It is an aggregation of R&D, plastic and metal moulds manufacturting for components and finished products, so we could monitor every step of our products, and then the quality is guaranteed,

Any questions, please feel free to contact me!

LJV 17mm Single Pole 1 Unit 7 Sections Rotary Switch: RS1700P1S7BA-H01-000

LJV Dual Shaft Adjustable Rotary Potentiometer ：RP09211GOAB-H03-0762

Please refer to the drawings below:

Application:

  Company introduction

LJV was focusing on supplying the spare parts of plastic and hardware for potentiometers and encoders since 1996, meanwhile, we have also devoted to R&D and manufacturing of potentiometers and encoders, and we are very confident that both our spare parts and finished products can reach customers’ requirements.

 Any questions, please feel free to contact me!

LJV Hollow Rotary Encoder: RE2801XB-H01-0026

LJV 28mm  Car Workpiece Incremental Hollow Rotary Encoder




How to order?

Please refer to the drawings below and  tell us your specifications, so that we could recommend accurate items to you:



Package


   Company introduction

LJV was focusing on supplying the spare parts of plastic and hardware for potentiometers and encoders since 1996, meanwhile, we have also devoted to R&D and manufacturing of potentiometers and encoders, and we are very confident that both our spare parts and finished products can reach customers’ requirements.

 Any questions, please feel free to contact us!

LJV Rotary Contacting Encoder: RE1101BB1-H01-0079

RE1101BB1-H01-0079(20P20,AA12F5)
20 pulse, 20 detents, torque:40~80gfcm
press force:500~600gfcm
L=12mm, D=5mm, F=5mm， shaft material: aluminum alloy

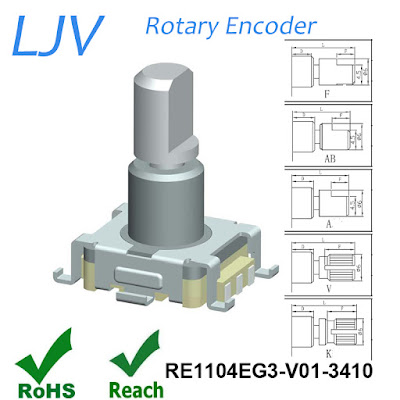

LJV 11mm Surface Mount Rotary Encoder:RE1104EG3-V01-3410

RE1104EG3-V01-3410(15P30,VA15F8)

torque:40~80gfcm, press force:500~600gfcm,

15 pulse, 30 detents,

L=15mm, F=8mm, D=5mm,

Shaft material: aluminum alloy

LJV 11mm Surface Mount Incremental Rotary Contacting Switch Encoder ：RE1104JF2-V01-4269

RE1104JF2-V01-4269(15P30,AA20F10)

torque:40~80gfcm,

press force:500~600gfcm,

L=20mm, F=10mm, D=9mm,

15 pulse, 30 detents,

Shaft material: aluminum alloy

LJV Absolute Rotary Encoder Drawing RP09310NOEB-H01-1131

     RP09310NOEB-H01-1131(B204a,YSL7A4.5)
     B typer, resistance:200K, tolerance: 10%, torque:20~45gfcm

LJV Rotary Potentiometer, Potential Divider, RP09310NOEB-H01-1131

RP09310NOEB-H01-1131(B204a,YSL7A4.5)

B typer, resistance:200K, tolerance: 10%,

torque:20~45gfcm

LJV rotary encoder RE08110AX-V01-0014, IP67

RE08110AX-V01-0014-10P20-AJC15F8-IP67

10 pulse, 20 detents, L=15mm, D=5mm, F=8mm

LJV rotary encoder RE08110AX-V01-0005

LJV rotary encoder RE08110AX-V01-0005-10P20-AEC18C9, 10 pulses, 20 detents, AE shaft, copper, mounting length 18mm, operation lenght 9mm

LJV rotary encoder drawing of RE08110AX-V01-0000

LJV rotary encoder RE08110AX-V01-0000, 10 pulses, 20 detents, AF shaft, aluminum alloy, mounting length 15mm, operation length 7mm

LJV Rotary Encoder
